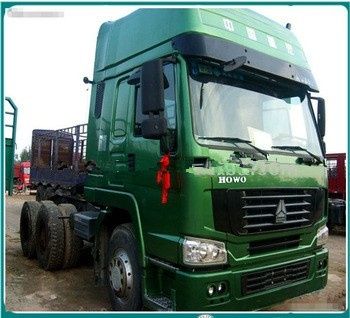

Truck Model

  HOWO tractor trucks 6x4 371HP

Dimension

(Lx W xH)(unloaded)(mm)

6800x2490x3668

Approaching angle/

Departure angle(°)

16/70

Overhang(front/rear) (mm)

1500/700,725

Wheel base (mm)

3200+1400,3225+1350

Max speed(km/h)

102

Curb weight(kg)

11930

Loading Weight(kg)

40000

Engine

(Steyr technology, made in China)

Model

WD615,water-cooled,four strokes,6 cylinders

 in line with water cooling,turbocharged and

 intercooling, directly injection

Fuel type

Diesel

Horse Power,

max(kw/rpm)

371HP,

Emission

EURO2

Fuel tanker capacity(L)

400

Transmission

Model

HW19710

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on

rear wheels

Steering system

Model

ZF8098

Front axle

HF9 drum type, Steering with double T-cross section beam

Rear axle

ST16

Color

White, red,Yellow .optional

Tyre

295/80R22.5 16PR 10+1 spare

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 cab, (one sleeping, with air-condition), all-steel

forward control,55ºhydraulically tiltable to the front, 2- arm

windscreen wiper system with three speeds, laminated

windscreen with casted-in radio aerial, hydraulically damped

 adjustable driver’s seat and rigid adjustable co-driver’s seat,

 with heating and ventilating system, outer sun visor,

 adjustable roof flap, with stereo radio/cassette recorder,

safety belts and adjustable steering wheel, air horn, with

4-point support fully floating suspension and shock absorbers
