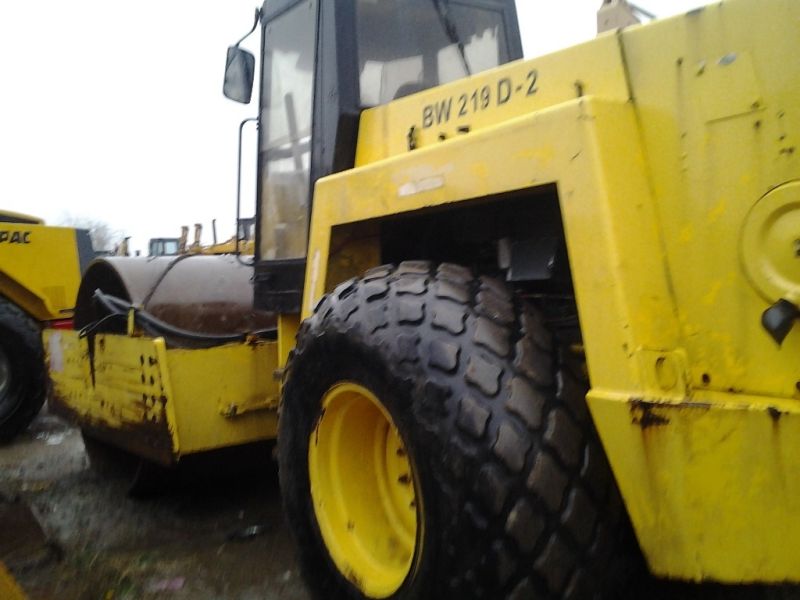

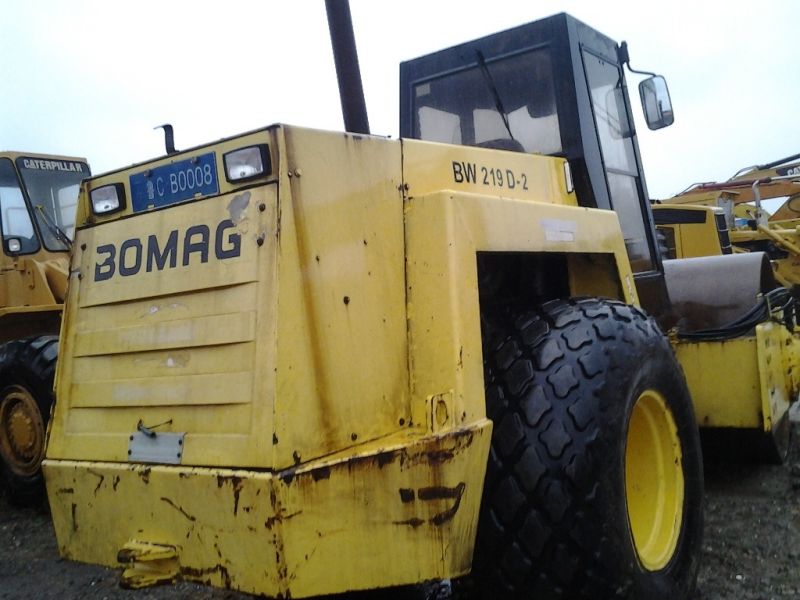

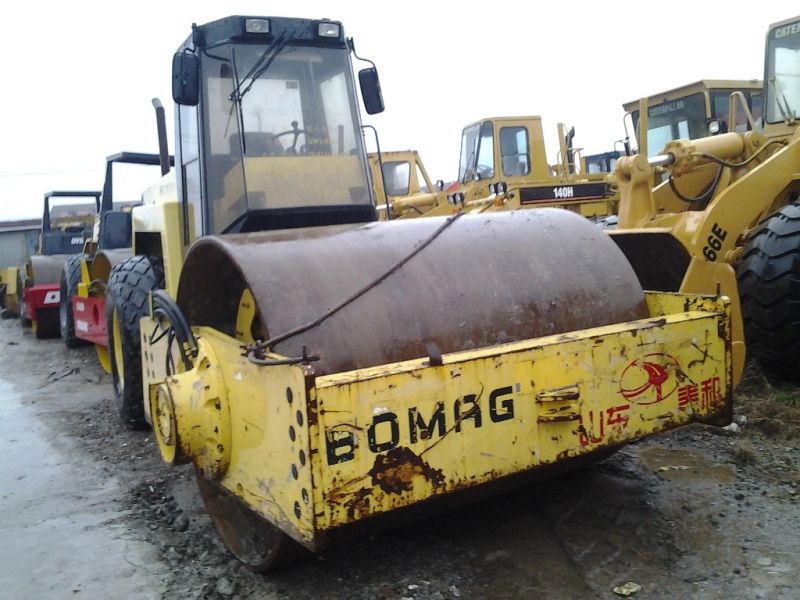

BW219D-2 Single-drum road Rollers Bomag compactor

BW219D-2 Single-drum road Rollers Bomag compactor BW219D-2 Single-drum road Rollers Bomag compactor BW219D-2 Single-drum road Rollers Bomag compactor
Product name : BW219D-2 Single-drum road Rollers Bomag compactor
Item : 2014614172326
Details :
  BW219D-2 Single-drum road Rollers Bomag compactor
year; 2008
engine; Deutz
low hours
capacity; 20T


Specification

Engine
Make Deutz
Model BF6L913
Gross Power 169.6 hp 126.5 kw
Net Power 160.5 hp 119.7 kw
Power Measured @ 2500 rpm
Number of Cylinders 6
Aspiration natural
Operational
Operating Weight 42165.6 lb 19126 kg
Fuel Capacity 87.2 gal 330 L
Max Speed 6.8 mph 11 km/h
Tires *if applicable 23.1/18-26/8PR
Operating Voltage 12 V
Drum
Drum Diameter 63 in 1600 mm
Static Linear Load 311.3 lb/in 55.6 kg/cm
Vibration Frequency 1 29 Hz
Nominal Amplitude - Low 0.07 in 1.7 mm
Centrifugal Force - Low 68521.8 lb 304.8 kN
Vibration Frequency 2 35 Hz
Nominal Amplitude - High 0.04 in 0.91 mm
Centrifugal Force - High 54628.6 lb 243 kN
Dimensions
Overall Length 19.8 ft in 6020 mm
Overall Width 7 ft in 2120 mm
Height to Top of Cab 10.4 ft in 3170 mm
Wheelbase 10.2 ft in 3105 mm
Ground Clearance 19.7 in 500 mm
Drum Diameter - Front 5.2 ft in 1600 mm
