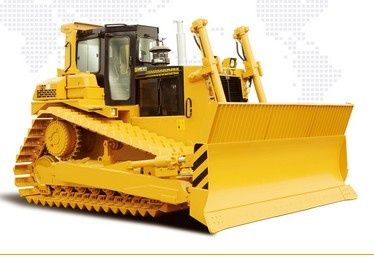

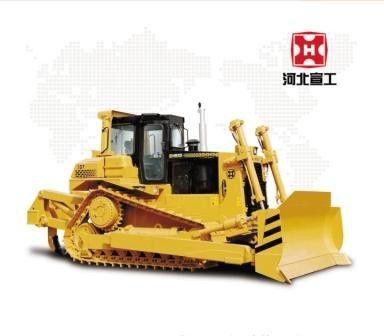

SD7HW HBXG brand new Crawler Bulldozer

SD7HW HBXG brand new Crawler Bulldozer SD7HW HBXG brand new Crawler Bulldozer
Product name : SD7HW HBXG brand new Crawler Bulldozer
Item : 2015411171541
Details :
 SD7HW HBXG brand new Crawler Bulldozer

Type: The track is triangle shape,the sprocket is elevated elastic suspended.
Number of track rollers(each side) 7
Pitch (mm) 216
Width of shoe (mm) 560

  1st 2nd 3rd
Forward (Km/h) 0-3.9 0-6.5 0-10.9
Backward (Km/h) 0-4.8 0-8.2 0-13.2

Engine Name: Cummins NTA855-C280S10
Rated revolution:(rpm) 2100
Flywheel power:(kw) 169
Max.torque:(N.m/rpm) 1097/1500
Rated fuel consumption:(g/kw.h) ≤235

Max. system pressure:(Mpa) 18.6
System output:(L/min) 194
Pump type: Gears oil pump

Torque converter: Torque converter is power separating hydraulic-mechanic type.
Transmission: Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted.
Steering clutch: The steering clutch is hydraulic pressed, usually separated clutch.
Braking clutch: The braking clutch is pressed by spring, separated hydraulic, meshed type.
Final drive: The final drive is two-stage planetary reduction gear mechanism, splash lubrication.
