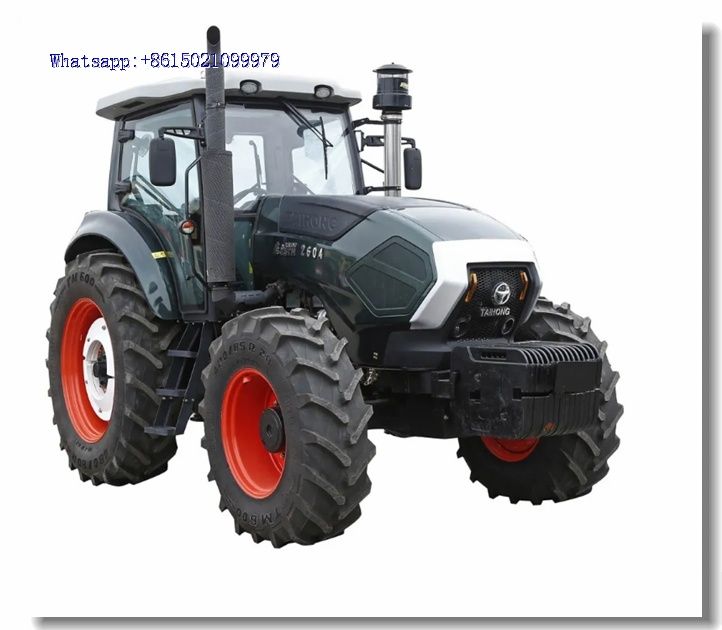

60hp 70hp 80hp 90hp Farming Machinery 100HP Compact/ Small / Mini /Farming Tractor with Loader, Tiller

Product No.：2019831115242
Online Inquiry

Basic Info

Model NO.

TH1004

Service Life

6-10 Years

Size

Large

Color

Blue

Condition

New

Tyre

11.2-24/16.9-34

Steering

Hydraulic Steering

Transmission

12f+12r

Clutch

Dual Stage

Pto Speed

540/1000 or 720/1000

Overall Size

4090*1850*2460mm

Structure Mass

2445kgs

Wheel Base

2060mm

Suspension

Rear Suspension Category II

Wheel Drive

4 Wheels

Applications

Orchard, Garden Yard, Farm Field

Cabin

Cabin with Fan, Heater

Combine Panel

Yes

Hydraulic Lifting Way

Force Rising and Down

Shuttle Shifts

Yes

Trademark

Taihong

Transport Package

No Package

Specification

130hp

Origin

China

HS Code

8701100000

Product Description

1. Basic Technical Data

Model			TH1004
type			4×4 wheel type
Overall dimension(mm)	length		4090
	width		1850
	height		2460
	wheel tread	front wheel	1235,1335,1435
		rear wheel	1000-1500
	Wheel base		2060
	Min.Ground clearance		350
structure weight (kg)			2445
Diesel engine	model		LR4V5P-T
	type		inlie water cooled four stroke six cylinder
	rated power (kw)		73.5kw
	rated speed (r/min)		2200
	fuel type		diesel
tire	front wheel		11.2-24
	rear wheel		16.9-34
clutch			dual stage clutch
steering			cycloid rotary valve ,all hydraulic steering
transimission			12F+12R
Suspension type			rear postioned 3-ponit links catageory III
PTO	type and speed		540/1000 or 720/1000
	spline size		ø35 ,6 teeth

2. Characteristics

Strong Power:
The farm tractor is in the top rank among the same industry in China. Its matched power brand can be YTO

High efficiency:
1.The tractor adopts fully power steering hydraulic brakes system ,three-point linkage with Category I.
2.PTO speed can be selected as 540/1000rpm to be suitable for different farm implements.
3.The tractor independently operated two stage clutch, reasonable 8F+8R shift gears to keep high working efficiency in various field work, transportation and engineering tasks.

High reliability: Strong double pressure lifting device, powerful lifting power, fast lifting speed, stable and reliable.

Comfortable driving experience: Hydraulic steering,cabin with AC, anti-dust, low noise and wide field vision in operation.
