Products >> CHINA BRAND NEW MACHINES >> HBXG

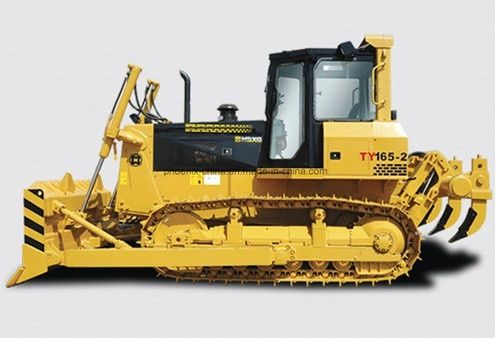

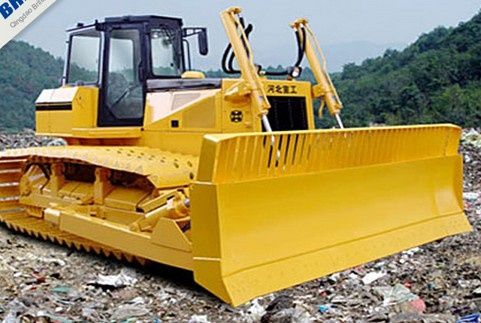

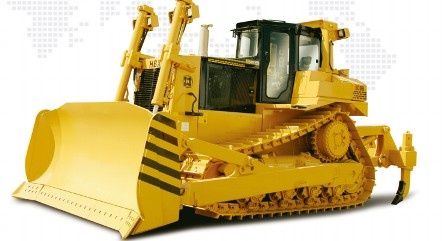

TY165-2 brand new HBXG Hydraulic Drive Crawler Bulldozer
- Product No.:201541120532
TY165-2 bulldozer is 165 horsepower track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic assisting operating, pilot hydraulic blade control and single lever steering and braking control.
TY165-2 bulldozer is characterized by high efficient, open view, optimized structure, easy operation and service with low cost and reliable entire quality.
It can be equipped with three shanks ripper, U-blade (7.4 cubic meter capacity) and other optional components.
TY165-2 bulldozer is applicable for earth handling in road construction, desert and oil-field working, farmland and port construction, irrigation and electric power engineering, mining and other engineer conditions.
It is the upgrade product of TY165-1 bulldozer.
TY165-2 bulldozer is characterized by high efficient, open view, optimized structure, easy operation and service with low cost and reliable entire quality.
It can be equipped with three shanks ripper, U-blade (7.4 cubic meter capacity) and other optional components.
TY165-2 bulldozer is applicable for earth handling in road construction, desert and oil-field working, farmland and port construction, irrigation and electric power engineering, mining and other engineer conditions.
It is the upgrade product of TY165-1 bulldozer.
General Specifications | |||||||
Blade | Straight and Tilting | ||||||
Operation weight:(kg) | 17800(without ripper) | ||||||
Ground pressure:(kpa) | 69 | ||||||
Track gauge (mm) | 1880 | ||||||
Min. ground clearance:(mm) | 352.5 | ||||||
Gradient: | 30°/25° | ||||||
Dozing capacity:(m3) | 5.0 | ||||||
Blade width:(mm) | 3297 | ||||||
Max. digging depth:(mm) | 420 | ||||||
Overall dimensions:(L×W×H)(mm) | 5416×3297×3160 | ||||||
Undercarriage System | |||||||
Type: | Swing type of sprayed beam. Suspended structure of equalizer bar | ||||||
Number of track rollers (each side) | 6 | ||||||
Number of carrier rollers (each side) | 2 | ||||||
Pitch (mm) | 203 | ||||||
Width of shoe (mm) | 500 | ||||||
Gear | |||||||
1st |
2nd | 3rd | |||||
Forward (Km/h) | 0-3.32 | 0-6.26 | 0-11.40 | ||||
Backward (Km/h) | 0-4.00 | 0-7.57 | 0-13.87 | ||||
Engine | |||||||
Engine Name: | Weichai WD10G178E25 | ||||||
Rated revolution:(rpm) | 1850 | ||||||
Flywheel power:(kw/HP) | 121/165 | ||||||
Max.torque:(N.m/rpm) | 830/1100 | ||||||
Rated fuel consumption:(g/kw.h) | ≤218 | ||||||
Implement Hydraulic System | |||||||
Max. system pressure:(Mpa) | 12 | ||||||
System output:(L/min) | 190 | ||||||
Pump type: | Two groups Gears pump | ||||||
Driving System | |||||||
Torque converter: | 3-element 1-stage 1-phase | ||||||
Transmission: | Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted. | ||||||
Steering clutch: | Multiple-disc oil power metallurgy disc compressed by spring, hydraulic operated | ||||||
Braking clutch: | Brake is oil two direction floating band brake operated by mechanical foot pedal. | ||||||
Final drive: | The final drive is double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal. |
