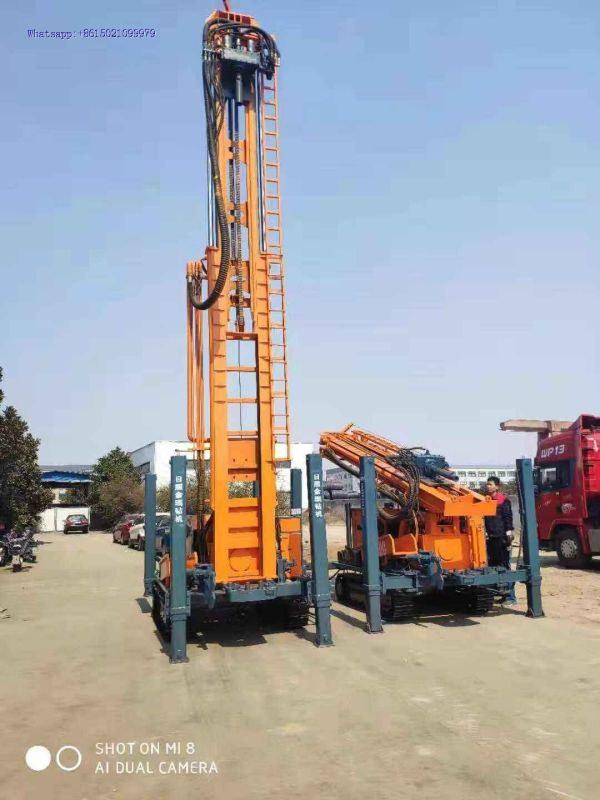

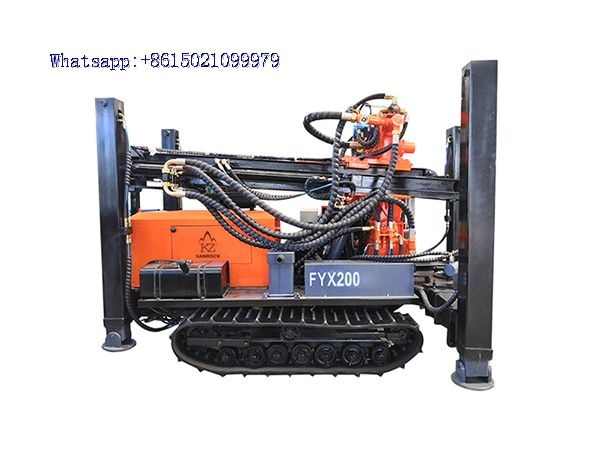

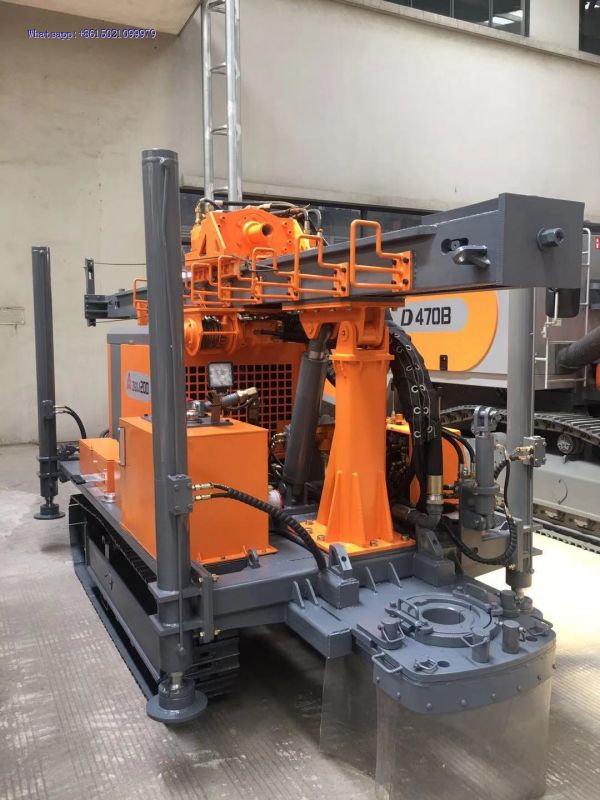

FY300A FY300 300m STEEL TRACK CRAWLER WATER WELL DRILLING machine portable water well drilling rigs deep water well borehole

 DESCRIPTION

400M depth Water Well Drilling Rig

Product Features


● This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.



 Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.



● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow

layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.



● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

SPECIFICATION

SPECIFICATIONS
FY300A CRAWLER WATER WELL DRILLING RIG
Drilling Depth 300m
Drilling Diameter 140-325mm
One-Time Advance Length 3.40m
Walking Speed 2.50km/h
Climbing Angles 30 degree
Engine Power 76KW
Work Air Pressure 1.7-3.0 Mpa
Air Consumption 17-35m3/min
Drill Pipe Length 2m, 3m
Drill Pipe Diameter 76mm, 89mm, 102mm
Rig Lifting Force 16 ton
Rotary Speed 40-70 rpm
Rotary Torque 5700-7500 N.m
Weight 7000KG
Dimensions 4100*1950*2600mm
FY300 CRAWLER WATER WELL DRILLING RIG
Drilling Depth 300m
Drilling Diameter 140-325mm
One-Time Advance Length 6.60m
Walking Speed 2.50km/h
Climbing Angles 30 degree
Engine Power 84KW
Work Air Pressure 1.7-3.3 Mpa
Air Consumption 17-35m3/min
Drill Pipe Length 2m, 3m, 6m
Drill Pipe Diameter 89mm, 102mm
Rig Lifting Force 20 ton
Rotary Speed 55-115 rpm
Rotary Torque 6200-8500 N.m
Weight 9000KG
Dimensions 5900*2000*2850mm
==============================================
please feel free contact us, whatsapp/wechat::008615021099979
====================================================
FY600/F800 CRAWLER WATER WELL DRILLING RIG
FY600/F800 Crawler Water Well Drilling Rig

DESCRIPTION

600M 800M depth Water Well Drilling Rig

Product Features


● This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.


● Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

● Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow
layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
● The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air
drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

SPECIFICATION
FY600 CRAWLER WATER WELL DRILLING RIG
Drilling Depth 600m
Drilling Diameter 140-350mm
One-Time Advance Length 6.60m
Walking Speed 2.50km/h
Climbing Angles 30 degree
Engine Power 118KW
Work Air Pressure 1.7-3.5 Mpa
Air Consumption 17-42m3/min
Drill Pipe Length 2m, 3m, 6m
Drill Pipe Diameter 102mm, 108mm, 114mm
Rig Lifting Force 28 ton
Rotary Speed 45-115 rpm
Rotary Torque 8500-11000 N.m
Weight 12000KG
Dimensions 6000*2200*2850mm



FY800 CRAWLER WATER WELL DRILLING RIG
Drilling Depth 700m
Drilling Diameter 140-400mm
One-Time Advance Length 6.60m
Walking Speed 2.50km/h
Climbing Angles 30 degree
Engine Power 140KW
Work Air Pressure 1.7-3.5 Mpa
Air Consumption 17-42m3/min
Drill Pipe Length 2m, 3m, 6m
Drill Pipe Diameter 102mm, 108mm, 114mm
Rig Lifting Force 30 ton
Rotary Speed 55-120 rpm
Rotary Torque 8850-13150 N.m
Weight 13000KG
Dimensions 6100*2200*2900mm



 ==================================================================================
please feel free contact us, whatsapp/wechat::008615021099979

=====================================================

FY600 CRAWLER WATER WELL DRILLING RIG
Drilling Depth 600m
Drilling Diameter 140-350mm
One-Time Advance Length 6.60m
Walking Speed 2.50km/h
Climbing Angles 30 degree
Engine Power 118KW
Work Air Pressure 1.7-3.5 Mpa
Air Consumption 17-42m3/min
Drill Pipe Length 2m, 3m, 6m
Drill Pipe Diameter 102mm, 108mm, 114mm
Rig Lifting Force 28 ton
Rotary Speed 45-115 rpm
Rotary Torque 8500-11000 N.m
Weight 12000KG
Dimensions 6000*2200*2850mm



FY800 CRAWLER WATER WELL DRILLING RIG
Drilling Depth 700m
Drilling Diameter 140-400mm
One-Time Advance Length 6.60m
Walking Speed 2.50km/h
Climbing Angles 30 degree
Engine Power 140KW
Work Air Pressure 1.7-3.5 Mpa
Air Consumption 17-42m3/min
Drill Pipe Length 2m, 3m, 6m
Drill Pipe Diameter 102mm, 108mm, 114mm
Rig Lifting Force 30 ton
Rotary Speed 55-120 rpm
Rotary Torque 8850-13150 N.m
Weight 13000KG
Dimensions 6100*2200*2900mm
